3D LASER SCANNER Experts in laser scanning MEASUREMENT PROCESS REQUEST A BUDGET

Millions of points positioned three-dimensionally in space that represent with geometric accuracy a physical reality

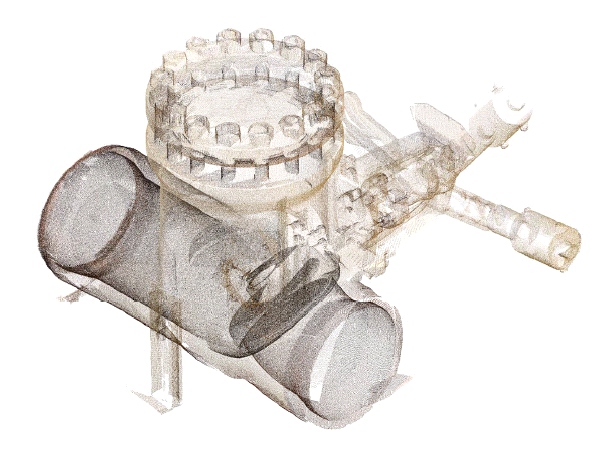

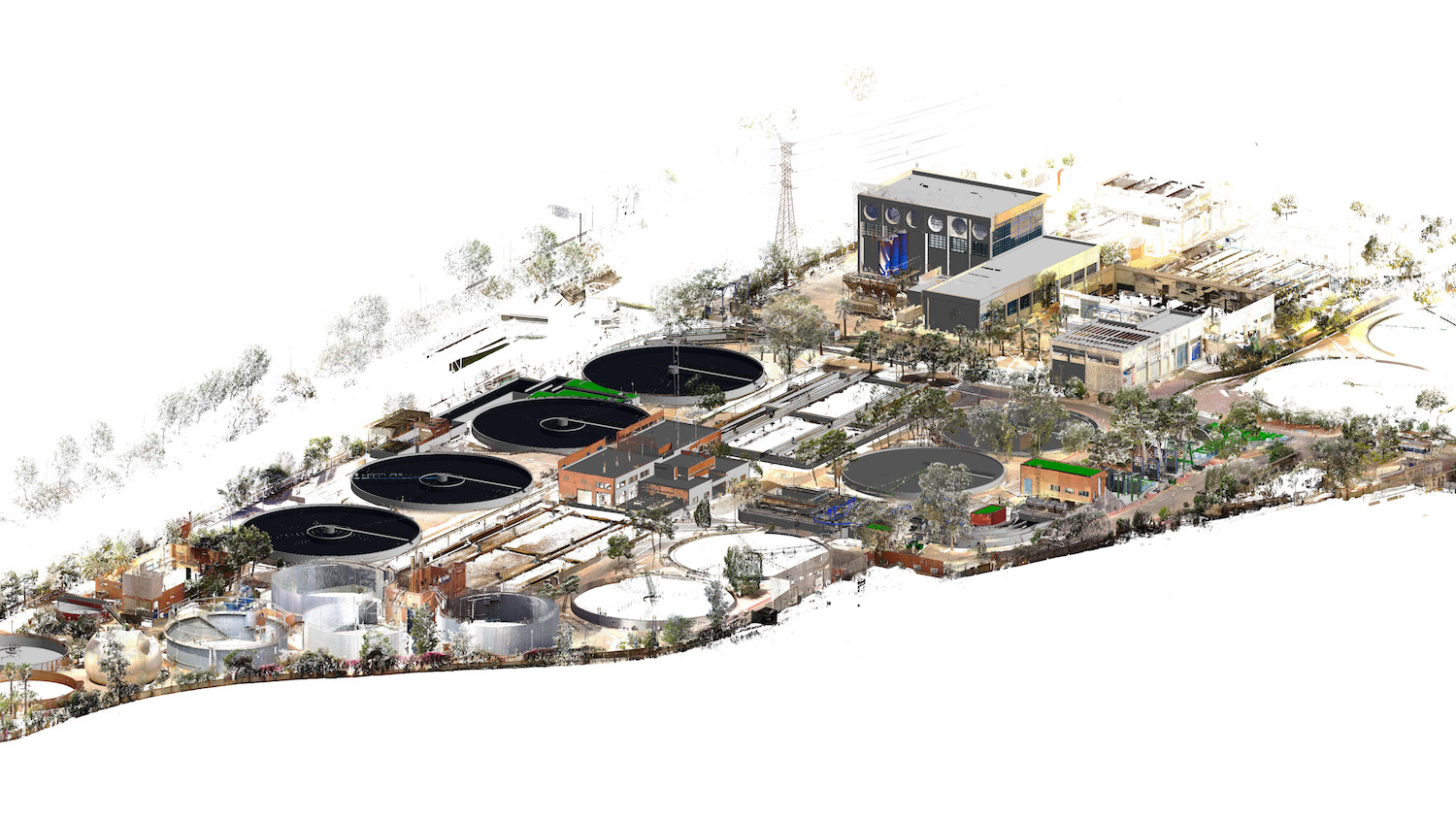

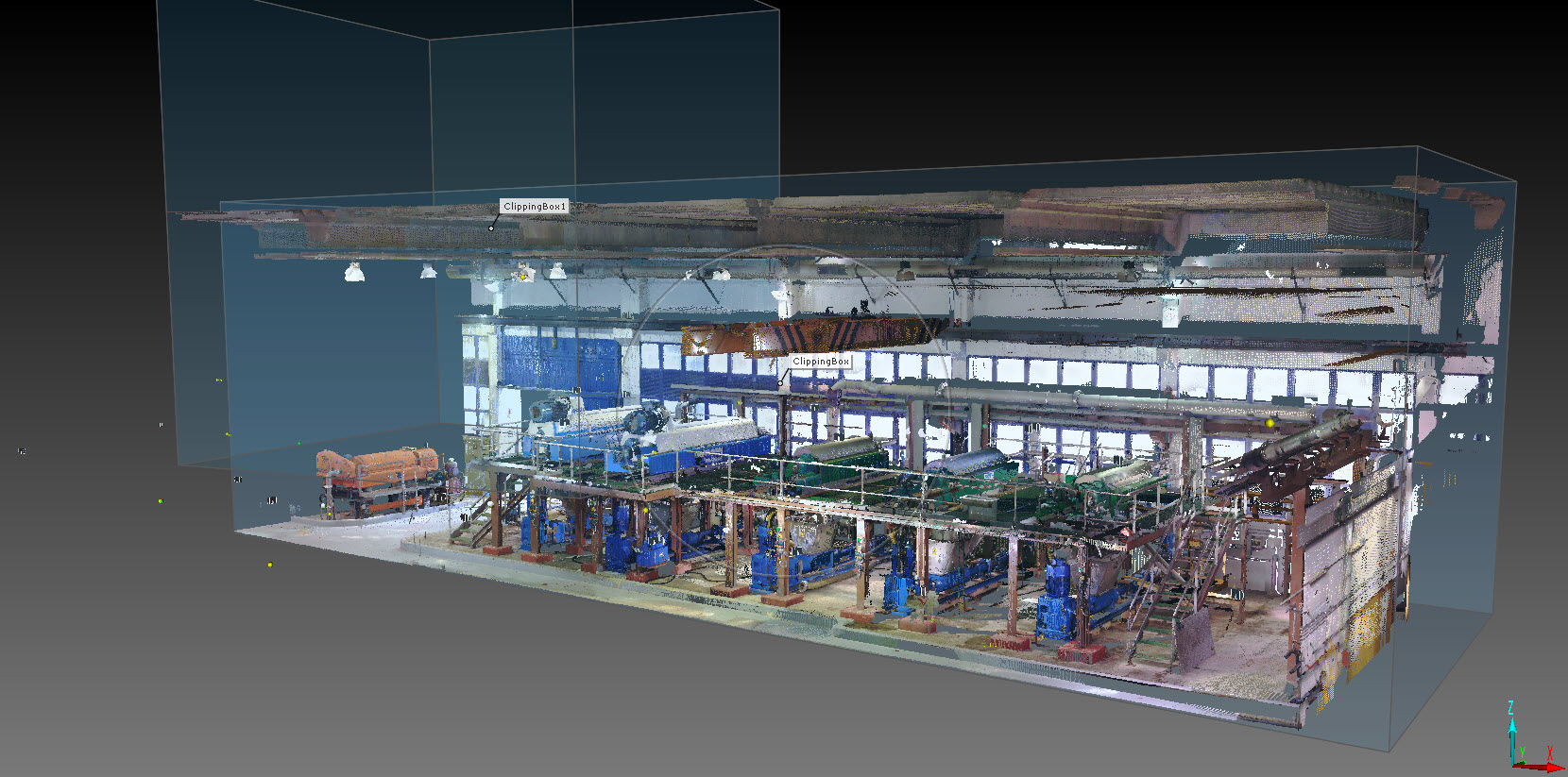

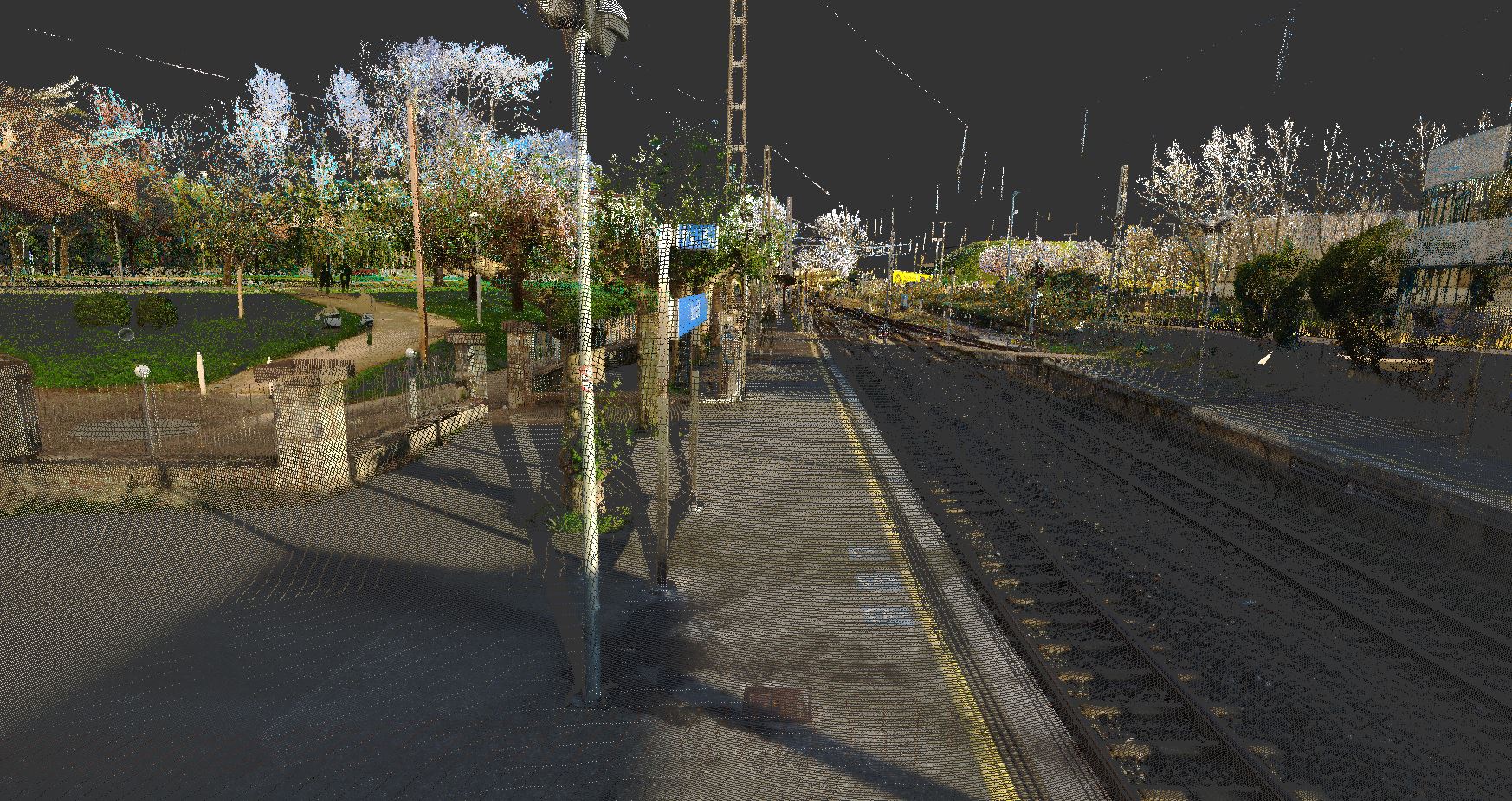

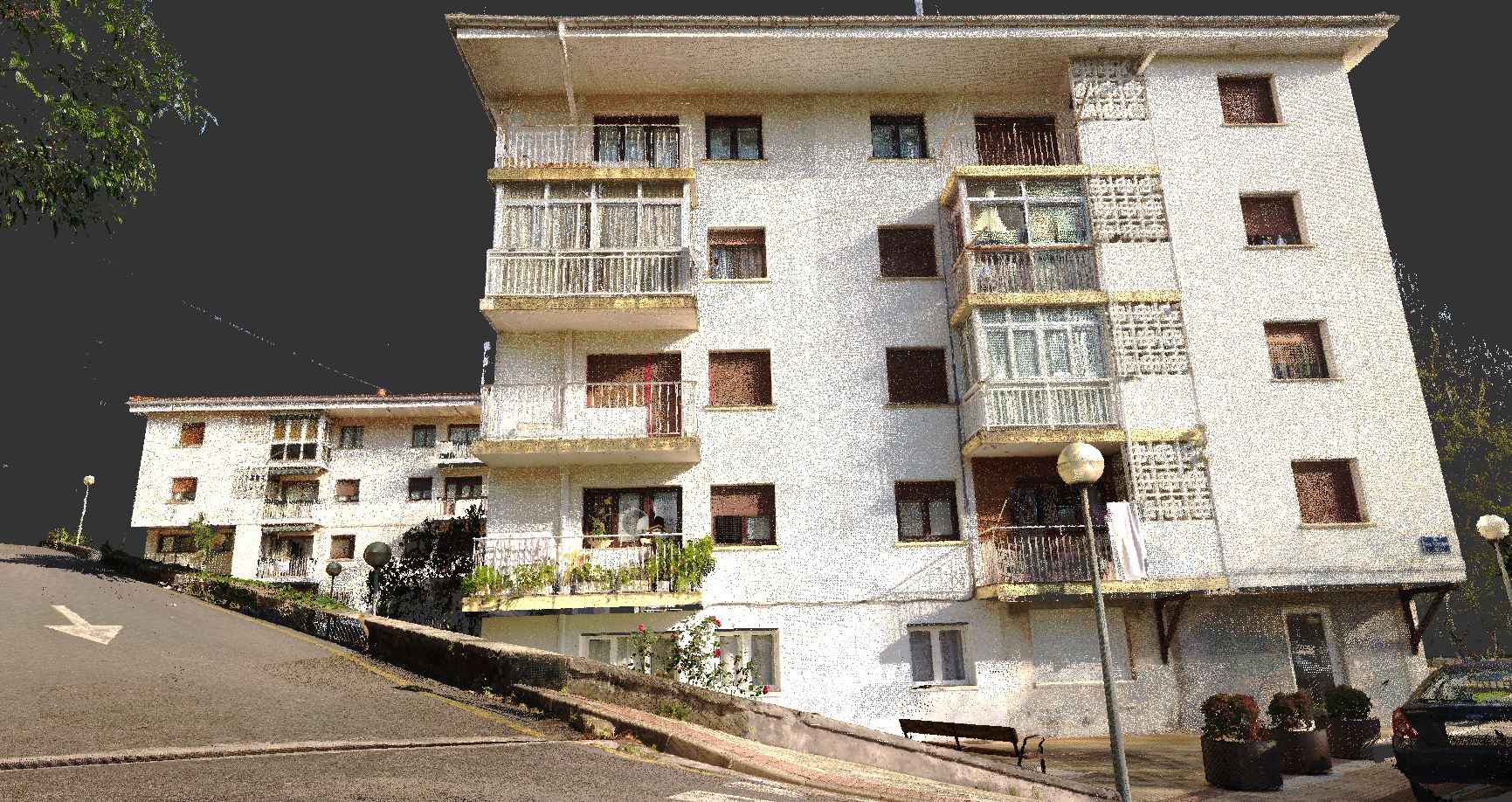

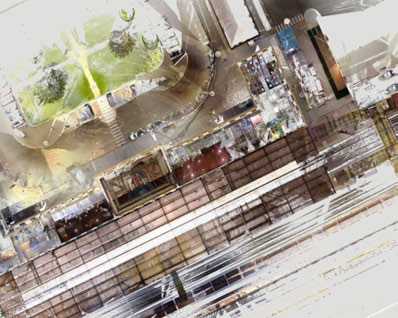

With 3D laser scanner technology we obtain a large number of points in space (3D point cloud) of whatever kind of place (facilities, building, land, etc.)

The point cloud contains all the metric information of the scanned surfaces as well as that related to its color and reflectivity of the material, therefore it contains all the information that may be of interest for the analysis and study of the element. The consultation of this information must be done by means of specific software capable of interpreting this format. The 3D Scanners incorporate a camera that allows to apply the true color of the objects to the points stored in scanned scene.

With this configuration of laser and camera, we obtain at the same time, both color information about the surfaces within its field of view and their geometry. The model obtained by a 3D Scanner describes the position in three-dimensional space of each point analyzed. If a spherical coordinate system is defined and the origin is considered to be the Scanner, each point analyzed is associated with a spherical coordinate that describes with millimetric precision the three-dimensional position of each point in the model in a coordinate system relative to the Scanner.

ASK FOR A QUOTE

 Spain: +34 963379694
comercial@aceroestudio.com
Peru: +51 (01)5552863
latam@aceroestudio.com










    I am a professionalI'm a Company/Institution







    Measurement

    DISTANCE

    The scanner uses a laser beam that reflects off an object and returns to the scanner. The distance is measured with millimeter accuracy by the phase shift between the emitted and received beam.

    VERTICAL ANGLE

    The mirror deflects the laser beam vertically onto the same object. The angle is encoded at the same time as the distance measurement.

    HORIZONTAL ANGLE

    The laser scanner rotates 360° horizontally. The horizontal angle is codified at the same time as the distance measurement.

    More than 20 years helping

    to build the future

    Our multidisciplinary team is composed of internationally renowned professionals with proven professional track record. For many years we have been participating in large projects in the 5 continents: subway lines, airports, dams, energy, building, installations, civil works, etc.

    Advantages of laser scanning Millimetric precision Its high accuracy makes this equipment the most requested among professionals in the sector. It performs such a precise measurement that it provides security to the projects to be carried out. Speed The reading speed of our equipment (500.000 points per second) makes it a very powerful tool that guarantees agility in data acquisition, thus reducing costs and working time. Cameras Thanks to its cameras and other components, we obtain a level of detail unattainable with any other measuring equipment. Versatility Its infinite variety of uses provides us with a wide range of utilities, adaptable to all types of plots and situations. Quality even without light Maximum scanning quality, even in total absence of light. Complex Figures It can compile multitude of surface data, difficult access areas or very complex geometric figures.
